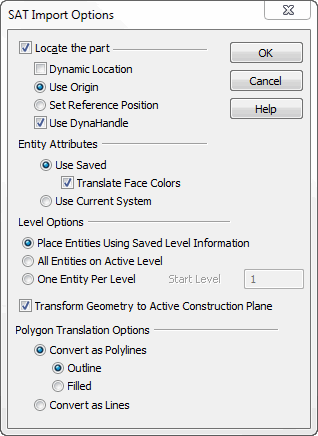

SAT Import Options DialogKeyCreator Drafting / File / Import / SAT Import / SAT Import Options DialogThis dialog appears after you select the Options button on the Select a SAT File to Import dialog. Dialog Options:
Locate the PartWhen enabled (checked) you are able to specify how the SAT (or SAB) file will be located in the target file. By using Dynamic Location, you will be able to manually rotate the SAT image and place it where and how you choose. The Use Origin feature can be used to locate the model at the origin of the original file. Finally, Set Reference Position can be used to temporarily preview the SAT in the target file. You can then cursor-select an origin on the preview and use that location to place the SAT in your drawing. Checking on Use DynaHandle will place an interactive DynaHandle at the origin for further positioning after import. Entity AttributesThe options under Entity Attributes allow you to import the attributes (line type, line width, etc) that were saved with the SAT, or use the current system attributes. Level Options
Transform Geometry to Active Construction PlaneWhen selected (default), the imported geometry is transformed to the current active Construction Plane.Polygon Translation Options This option is available for the following translators: STEP, Parasolid, SolidWorks, Autodesk Inventor, CATIA V4, CATIA V5, Pro/Engineer, Unigraphics. Controls how triangular entities (three planar lines forming a closed loop) are translated into KeyCreator
|
