KeyCreator / Tools / Extract / Extract HLR
This function is similar to the Save HLR to Level feature in previous versions. It can be used to project flat geometry to the active depth on the active level, using the Hidden Lines Removed display style. Entity attributes are maintained. After configuring the dialog options, you are asked to select the geometry, or instance, to extract. If non-solids entities are selected, they are only projected. No attempt is made to apply faceting to them. Using the Function:

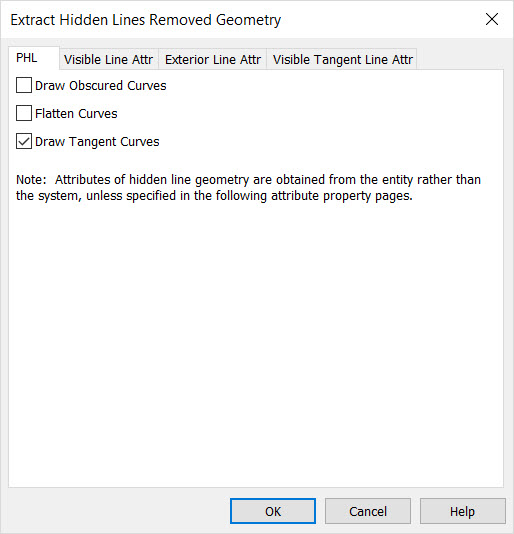

Dialog Options:The PHL Tab OptionsThese options control how the hidden line renderings are processed by KeyCreator.
The Attributes TabsThese are standard KeyCreator attributes pages*HIDR_CADKEYTYPE_WS that control the appearance of the various line types in the extracted Hidden Line geometry After configuring the dialog options, you are asked to select the geometry, or instance, to extract. If non-solids entities are selected, they are only projected. No attempt is made to apply faceting to them. |
