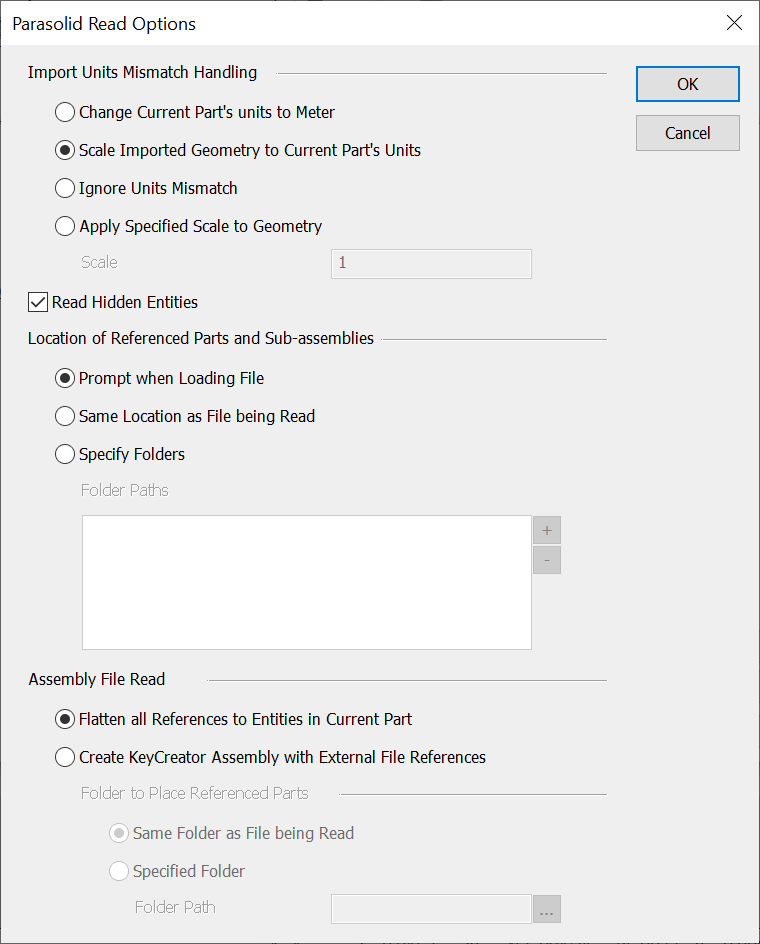

The following settings are available from the Parasolid Import Options dialog. When you have finished making your selections in the dialog box, click OK on the dialog.

Dialog Options:

Scaling Options for Geometry Translated from Parasolid File

• Scale Geometry to Current Part’s Units – When selected, the geometry in the file to be imported will be scaled to the units of measurement in the current part.

• Apply Specified Scale To Geometry – When selected, you will be able to specify a scale value in the editable field. This scale is then applied to the imported geometry.

• Ignore Units Mismatch – When selected, a mismatch of units between the import file and the current part will be ignored.

• Change Current Part’s Units to Meters and Change Modeling Tolerances – When selected, the units of the current part will be changed to meters, and the modeling tolerances will update accordingly.

Read Hidden Entities

Checked on by default the import will read and import any hidden entities contained within the file. Unchecked these hidden entities will not be imported.

Location of Referenced Parts and Sub-Assemblies

Prompt when loading file — A select folder prompt will show current folder path with the ability to add a new path choosing the + option or remove a listed path choosing the - option:

Same Location as File being Read — Will read/import any part reference and sub-assemblies within the same path location of the chosen file.

Specify Location — If exact location is known and differs from location of the import file, input the location path for the reference parts and sub-assemblies.

Assembly File Read Options

Flatten all Refreneces to Entities in Current part — Imports all reference entities into the current CKD part file. The assembly references other (new) parts in the same CKD file.

Create KeyCreator Assembly with Extrnal File References — Converts the import files assembly structure to a KeyCreator Assembly with folder location options provided.
