Export JT
JT export allows for part file, (B-Rep, Curves) and Assembly files to be exported in the JT format. For versions supported see the Translator Specification data sheet.

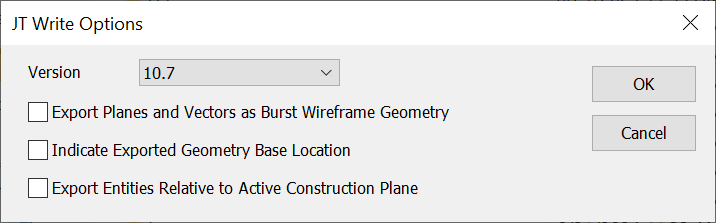

Dialog Options
Export Planes and Vectors as Burst Wireframe Geometry
When selected, planes and vectors are exported as burst wireframe geometry.
Indicate Exported Geometry Base Location
When selected, you are prompted to select the origin for the entities to be exported. When cleared, the default origin (0, 0, 0) is used.
Export Entities Relative to Active Construction Plane
When selected, the entities are transformed so they are relative to the active construction plane.
