Display View

Revision / Compare Parts Interface / Display View

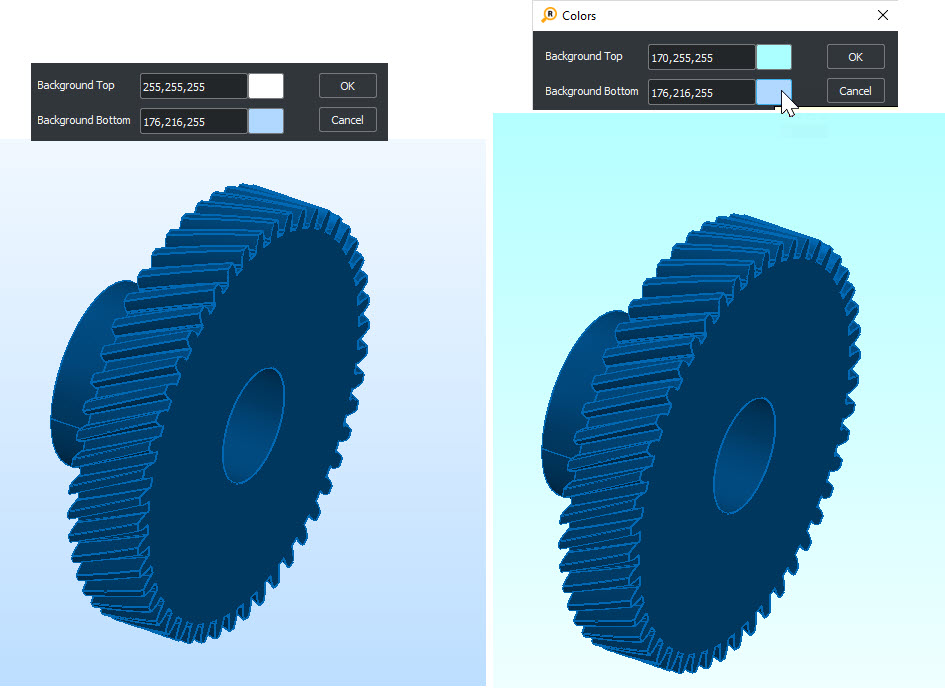

Display view default background colors set in Customize Application, can be changed in Toolbar-Colors:

KCompare Revision Change Background

World Coordinate Indicator:

KCompare Revision World Coordinate

Mouse manipulation not responding correctly - Try:

Change Mouse Manipulation Scheme in application Options

Keyboard Hot Keys

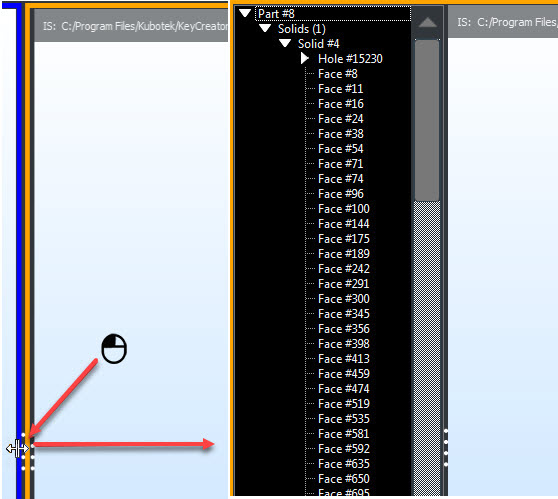

Part Tree Open:

KCompare Revision Open Part Tree

Part Tree hover face highlights object:

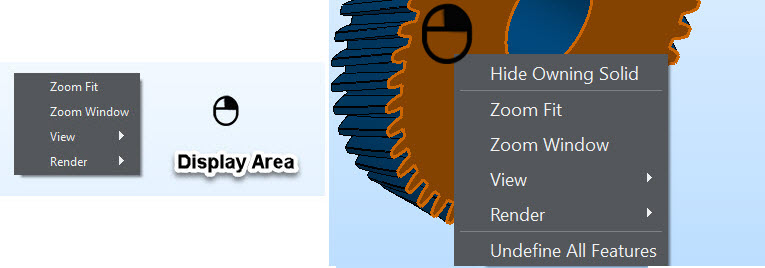

Display context menu:
