Partial Match Examples

A subset of Matched exists called Partial Match. When detected the user can decide to keep the Matched status, ( will not show as a Difference in report file) or right click Partial Match in results tree and designate as Different.

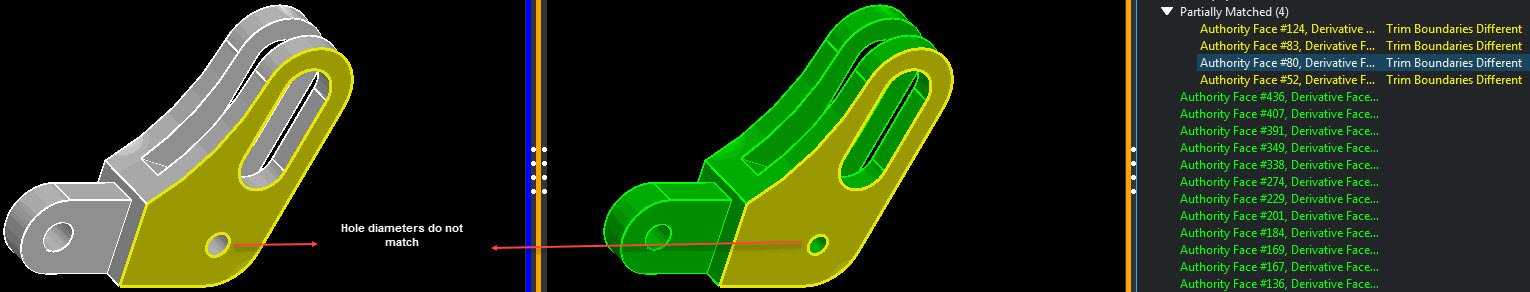

Example 1, Hole Diameter changes surface boundaries:

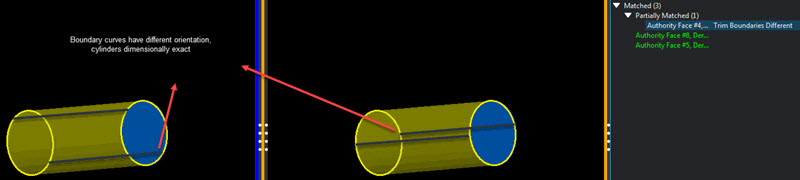

Example 2, Flowlines have different orientation but cylinders dimensionally the same:

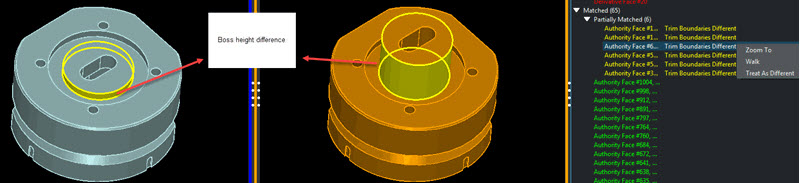

Example 3, Height difference in boss profile:
